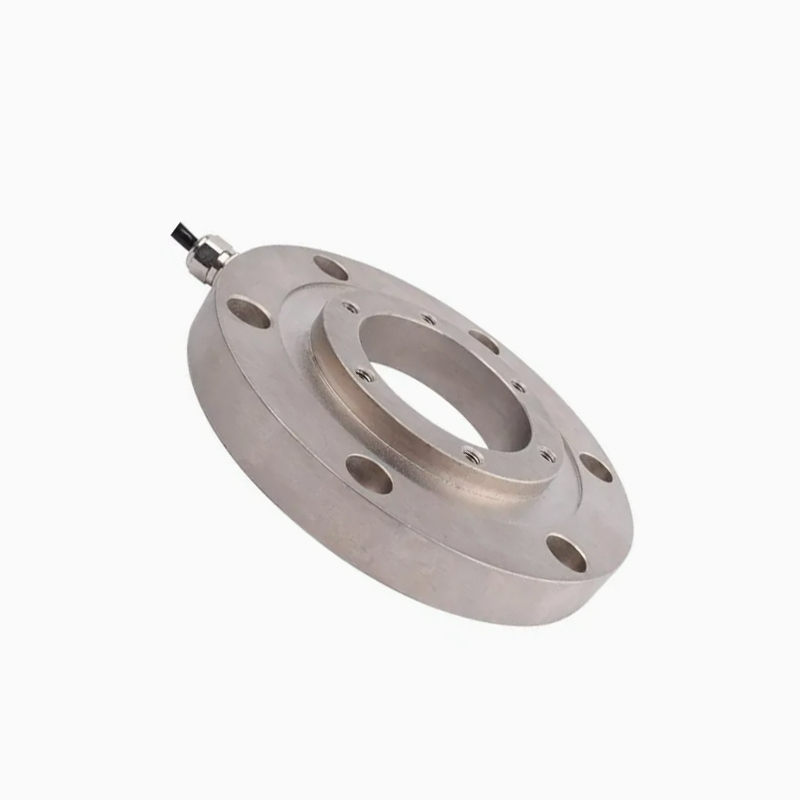

Mini Force Sensor Alloy Steel 10-500kg Thru-Hole Load Cell

Product Description

10, 20, 50, 100, 200, 500kg Alloy Steel Or Customized Force Sensor

10, 20, 50, 100, 200, 500kg Alloy Steel Or Customized Force Sensor RJ is a model of our brand RUIJIA Series, Force Sensor can be used

to measure force 10kg, 20kg, 50kg, 100kg, 200kg, 500kg or customized capacity, its material we use Alloy steel, we can also customized material.

Force Sensor Sensitivity is 1.0±10%mV/V, the Zero Balance is ±0.03mV/V.
Force Sensor  creep(30min) ≤0.2%F.S.. The non-linearity ≤0.5%F.S.. Hysteresis ≤0.3%F.S.. Repeatablity ≤0.2%F.S..
Force Sensor  Input impedance is 780±20Ω, the output impedance is 700±10Ω.
Force Sensor  Temp.effect on output is 0.1%F.S./10ºC, Temp.effect on zero is 0.1%F.S./10ºC.
Force Sensor Insulation Resistance ≥5000MΩ/100V(DV).
Force Sensor  Recommended Excitation is 5-15V, the Maximum Excitation is 20V.
Force Sensor  Compensated Temp Range is -10~60ºC, the Operating Temp Range is -20~70ºC.
Force Sensor  safe overload is 150%F.S.. The ultimate overload is 200%F.S..
The cable size is ∅4*3000mm.
The weight is 0.4kg or customized.

Product Parameters

3. Dimension
Need to be customized

4. Application
10, 20, 50, 100, 200, 500kg Alloy Steel Or Customized Force Sensor can be used for weighing in industrial automation measurement control systems.
Used for electronic belt scales, silo scales, batching scales, electromechanical combination scales, hook scales, and other force measurement and control, and computer-controlled batching.

5. Packaging & delivery
Packaging Details
1.Opp bag
2.Custom box
3.According to your request

Port: Shanghai
