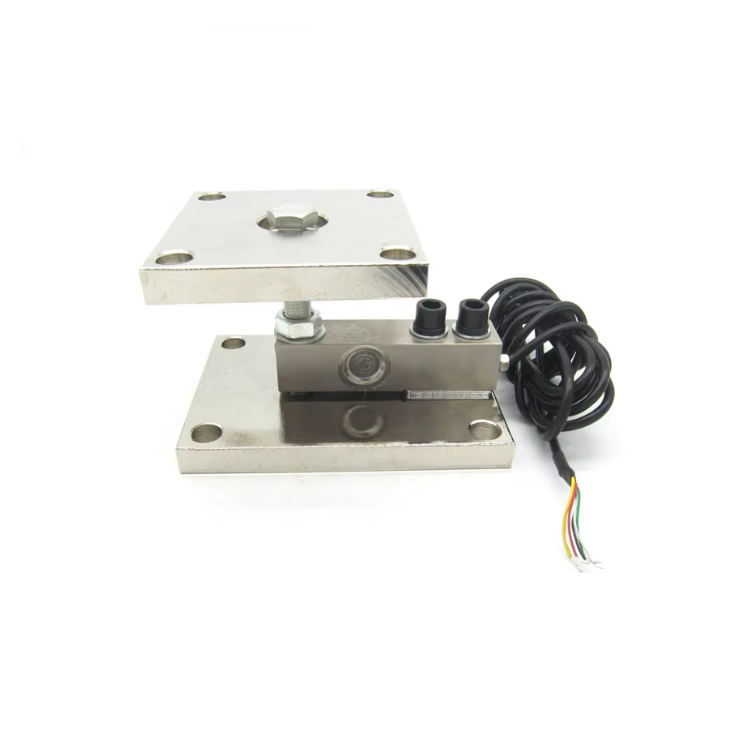

Weighing system with junction box indicator display load cell for silo tank
Features:
Capacity range: 100kg, 200kg, 300kg, 500kg, 1ton, 2ton, 3ton
Alloy steel loadcell, Welded-seal, IP67 , oil proof, waterproof and anti-corrosion.
Single shear beam, easy installation.
High accuracy and low profile.
Apply to: Tank scale, silo, mixer weighing system
Parameters:
| Application |
Tank scale, silo, mixer weighing system |
| Model |
RJ |
| Capacity |
100kg, 200kg, 300kg, 500kg, 1ton, 2ton, 3ton |
| rated output |
2.0±0.004mV/V |
| Accuracy class |
C2 C3 |
| maximum number of verification intervals |
2000 Nmax 3000 Nmax |
| Minimum loadcell cerification intervals |
Emax/5000Vmin Emax7500 Vmin |
| Combined error |
≤±0.030 % RO ≤±0.020 % RO |
| Creep |
0.02%RO/30min |
| Temp. effect on sensitivity |
0.0016 %RO/℃ 0.0012 %RO/℃ |
| Temp.effect on zero |
0.003%RO/℃ 0.002%RO/℃ |
| Zero balance |
±1.0 %RO |
| Input resistance |
365±10ohm |
| Output resistance |
350±3 ohm |
| insulation resistance |
5000 MΩ(50V) |
| Recommended excitation voltage |
5-12V |
| Compensated temperature range |
-10-+40℃ |
| operating temperature range |
-35-+80 ℃ |
| safe overload |
120 %RO |
| Ultimate overload |
150%RO |
| loadcell material |
alloy steel |
| Connecting cable |
Φ5.7x2m |
| Method of connecting wire |
Red- input+, black- Input-. Green- Output+, White- output - |
