Stainless Steel Compression Load Cell 5-500kg Analog Output

Rincian produk:

Tempat asal:	Cina
Nama merek:	RJ
Sertifikasi:	CE/ROSE
Nomor model:	RJ

Informasi Rinci

Tempat asal:

Cina

Nama merek:

Sertifikasi:

CE/ROSE

Nomor model:

Output:

Sensor Analog

Kapasitas:

5-500kg

Kepekaan:

1,5 ± 0,2 % mV/v

Tegangan eksitasi:

5 ~ 12 VDC

kelebihan beban yang aman:

150% RC

Bahan:

Baja tahan karat

Menyoroti:

High Light

Menyoroti:

Stainless Steel Load Cell 500kg

Analog Output Load Cell Sensor

Compression Load Cell 5kg

Informasi Perdagangan

Kuantitas min Order:

Harga:

$40-50

Kemasan rincian:

Karton atau peti kayu

Waktu pengiriman:

5-8 hari kerja

Syarat-syarat pembayaran:

L/C,D/A,D/P,T/T,Western Union

Menyediakan kemampuan:

2000PC/Bulan

Deskripsi Produk

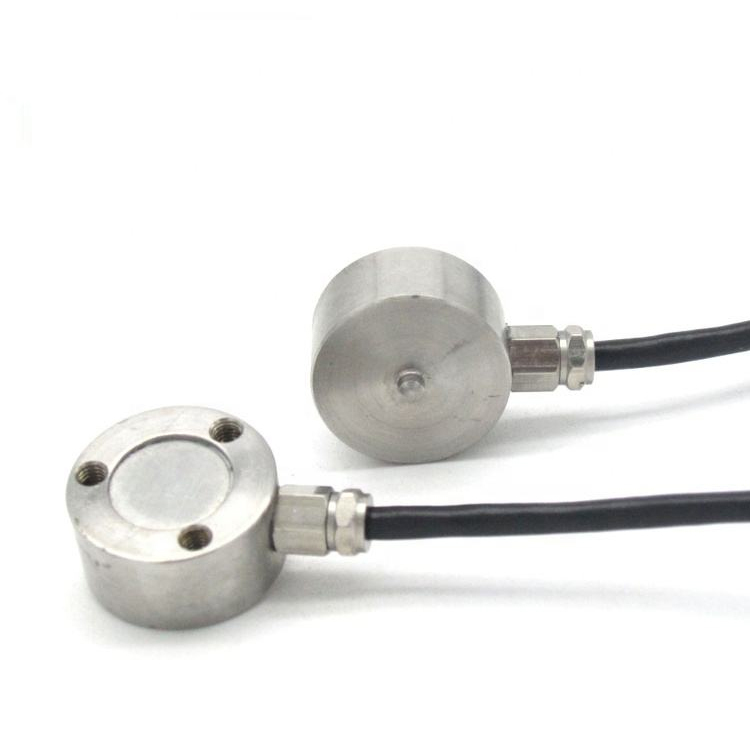

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity	5kg-500kg
Sensitivity	0.5~1.5 mv/V
Precision	0.5 %F·S
Creep	±0.2 %F·S/30min
Non-linearity	±0.5 %F·S
Hysteresis error	±0.5 %F·S
Repeatability	±0.5 %F·S
Zero temperature coefficient	±0.2 %F·S/10℃
Temperature Effect On Output	±0.2 %F·S/10℃
Input resistance	500 ± 20 Ω
Output resistance	500 ± 20 Ω
Insulation resistance	≥ 2000 MΩ
Excitation voltage	5 ~ 15 VDC
Working temp. range	-20 ~ 70℃
Safety overload	150 %F·S
Sealing grade	IP67
Material	Stainless steel
Wiring	Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1
